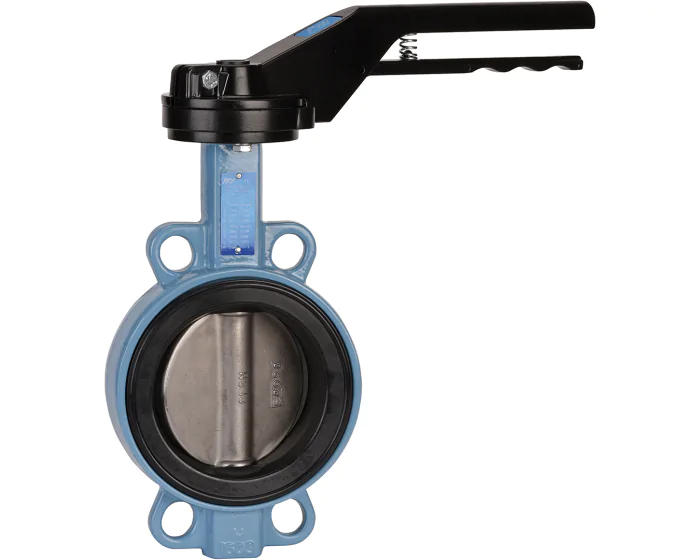

TTV Ducitle iron butterfly valve 1153FD wafer CF8M disc/EPDM seat
€119.03
(excl. btw)
The ductile iron butterfly valve 1153FD wafer with CF8M disc and EPDM seat is designed for precise flow control in food applications. Its durable construction ensures reliable performance and compliance with hygiene standards.
Specification
Value
DN inches NPS
1''1/2
Option certificate 3.1
Yes
DN metric
40/49
Construction standard
ISO 10631 - EN 593
Type of paint
Rilsan
Paint coating thickness (µm)
250.00
EN face-to-face standard
EN 558 Series 20
DIN face-to-face standard
DIN 3202 Part.3 Series K1
ISO face-to-face standard
ISO 5752 Series 20
Brand
TTV
Tightness test standard
EN 12266-1 Rate A
Type of seat
Removable
Notch plate
Yes
Opening device
Handle
Application
Air conditioning / Heating
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 304
Lockable
Yes
Square, star (mm)
Square 8 mm
ATEX compatible
Yes
Torque (Nm)
9
DN
DN40 - 1''1/2
Face to Face (mm)
33.0
Fluid
Hot water / Cold water / Drinking water / Compressed air / Domestic fuel
Kv (m³/h)
36.0
Seat
EPDM
Body material
Ductile iron
Disc material
Stainless steel ASTM A351 CF8M
ISO pad 5211
F05/F07
PS (bar)
16
Connections
Between flanges PN10/16 #150
TS max (°C)
110
TS min (°C)
-20
Butterfly valve design
Concentric
Wafer/lug
Wafer
ATEX zone
1 & 21. 2 & 22
Through shaft
Yes
Warranty period
10 years
CE
Yes
Handle material
Aluminium
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
9794
Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Handle
1153040FD
S1009714
€119.03
(excl. btw)
add to cart
9795
Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Handle
1153050FD
S1009715
€119.03
(excl. btw)
add to cart
9796
Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Handle
1153065FD
S1009716
€130.71
(excl. btw)
add to cart
9797
Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Handle
1153100FD
S1009717
€177.69
(excl. btw)
add to cart
9798
Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Handle
1153125FD
S1009718
€221.90
(excl. btw)
add to cart
9799
Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Handle
1153150FD
S1009719
€259.70
(excl. btw)
add to cart
9800
Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Gears
1153152FD
S1009720
€289.27
(excl. btw)
add to cart
9801
Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Handle
1153200FD
S1009721
€379.11
(excl. btw)
add to cart
9802
Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Gears
1153202FD
S1009722
€444.73
(excl. btw)
add to cart
9803
Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Handle
1153250FD
S1009723
€605.20
(excl. btw)
add to cart
9804
Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Gears
1153252FD
S1009724
€637.81
(excl. btw)
add to cart
9805
Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Handle
1153300FD
S1009725
€750.19
(excl. btw)
add to cart
9806
Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Gears
1153302FD
S1009726
€885.46
(excl. btw)
add to cart
